Coastal Inflatables Model Lineup

COASTAL 330 CC

The 330 CC offers a console & bench seat offset towards the starboard side, creating a more generous corridor on the port side for easier movement fore-and-aft.

COASTAL 390 JS/CC MarinaMax

Much like the "Panamax" and "Neo Panamax" ships designed to be as spacious as possible while still being able to squeeze through the Panama Canal, the 390 MarinaMax is designed to make the most of the "13 foot boat" slip. Available in both JS and CC variants.

Coastal 520 CC

As the largest craft in production during the 2024 season the 520 CC offers the most power, payload capacity and seakeeping ability.

COASTAL 420 CC

We're all about options. Let's talk about what's right for your boat

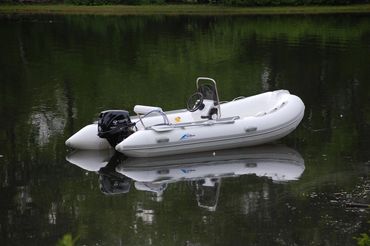

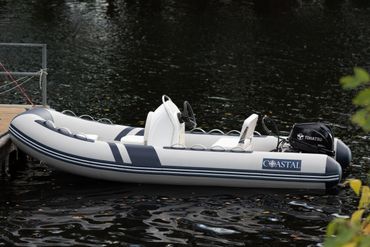

Coastal 330 CC

Specifications

Model 330 CC

Outside Length 11' 9''

Inside Length 9' 3''

Inside Beam 3' 6"

Outside Beam 5' 3''

Number of Chambers 3

Tube Diameter 16.5''

Maximum Occupants 4 + 1

Power (max) 15HP

Power (recommended) 15HP

Engine Weight (max) 161 lbs

Length of shaft 15"

Net weight (lbs) 198

- Coastal 330 CC

Scaling up to a 330 class boat makes room for a bow locker/seat while coming in at 11' LOA for a maneuverable craft with excellent stability that makes embarkation a breeze at the dock or when tending larger vessels.

Find out more

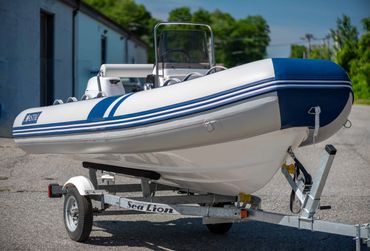

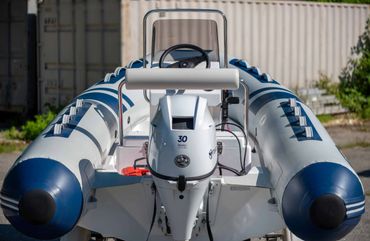

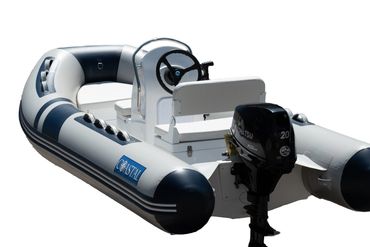

390 marinamax JS/CC (cc shown)

Specifications

Model# 390 JS

Outside Length 12' 9''

Inside Length 10' 2''

Inside Beam 3' 6"

Outside Beam 5' 11"

Number of Chambers 3

Tube Diameter 17.3''

Maximum Occupants 5 + 1

Power (max) 25HP

Power (recommended) 20HP

Engine Weight (max) 209 lbs

Length of shaft 15"

Net weight (lbs) 216

- Go 390 MarinaMax -

Even more spacious, the 13 foot MarinaMax has a bow locker/seat and ample room for passengers and baggage or gear.

Find out more

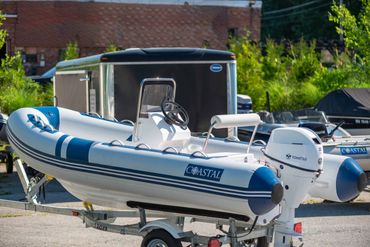

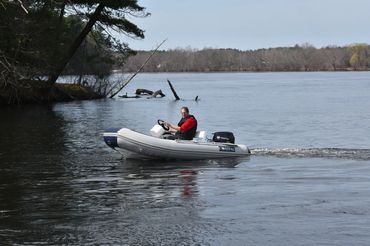

Coastal 420 CC

Specifications

Model 420 CC

Outside Length 13' 9''

Inside Length 10' 9''

Inside Beam 4' 4"

Outside Beam 6' 2"

Number of Chambers 3

Tube Diameter 18.5''

Maximum Occupants 5 + 1

Power (max) 40HP

Power (recommended) 30HP

Engine Weight (max) 209 lbs

Length of shaft 20"/25"

Net weight 315 lbs

- Go 420 CC -

Equipped with a bow locker/seat as well as storage compartments in both the console and the bench seat, the Coastal 420 CC is a great all-around boat. Available with Canopy. Want a stereo, depth gauge, fish finder or other accessories? Just ask!

Find out more

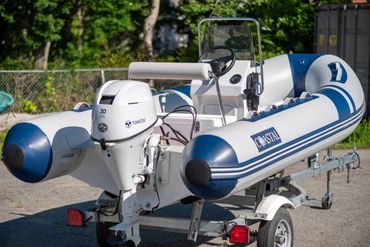

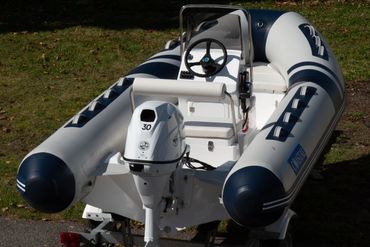

Coastal 520 CC

Model 520CC

Outside Length 17'

Inside Length 13' 9''

Inside Beam 4' 4"

Outside Beam 6' 2"

Number of Chambers 5

Tube Diameter 18.5''

Maximum Occupants 5 + 1

Power (max) 60HP

Power (recommended) 60HP

Engine Weight (max) 300

Length of shaft 20"/25"

Net weight 515 lbs

Learn More

Our new 520 is 17' with 60 Hp motor.

It is a fast and stable boat that can handle the rough water. all 17 boats are built with Hypalon for a long life.

Find out more
